PJ High Frequency Surge Testers
SIGNATURE MODELS

Bench & Portable - 6KV to 20KV

 **Two 20KV Bench Models are available .... S20  and  SP20!

MODEL
NUMBER*
APPROX.
WEIGHT
DIMENSIONS
L" x W" x H"
POWER INPUT
(Volt Amps)
PEAK VOLTAGE OUTPUT PEAK CURRENT OUTPUT
S6 61 lbs 18.5" x 19" x 12.5"  360 VA   6,000 V 150 amps
S10 63 lbs 18.5" x 19" x 12.5"  720 VA 10,000 V 300 amps
S12 65 lbs 18.5" x 19" x 12.5"  840 VA 12,000 V 375 amps
S15 67 lbs 18.5" x 19" x 12.5" 1080 VA 15,000 V 500 amps
   ** S20 73 lbs 18.5" x 19" x 14" 1440 VA 20,000 V 700 amps
TS6 65 lbs 18.5" x 19" x 14"  360 VA   6,000 V 150 amps
TS10 67 lbs 18.5" x 19" x 14"  720 VA 10,000 V 300 amps
TS12 69 lbs 18.5" x 19" x 14"  840 VA 12,000 V 375 amps
TS15 71 lbs 18.5" x 19" x 14" 1080 VA 15,000 V 500 amps
TSM6 63 lbs 18.5" x 19" x 10.7"  360 VA   6,000 V 150 amps
TSM10 64 lbs 18.5" x 19" x 10.7"  720 VA 10,000 V 300 amps
TSM12 65 lbs 18.5" x 19" x 10.7"  840 VA 12,000 V 375 amps
TSM15 66 lbs 18.5" x 19" x 10.7" 1080 VA 15,000 V 500 amps
SP6 65 lbs 18.5" x 19" x 14"  360 VA   6,000 V 150 amps
SP10 67 lbs 18.5" x 19" x 14"  720 VA 10,000 V 300 amps
SP12 69 lbs 18.5" x 19" x 14"  840 VA 12,000 V 375 amps
SP15 71 lbs 18.5" x 19" x 14" 1080 VA 15,000 V 500 amps
  ** SP20 84 lbs 18.5" x 19" x 14" 1440 VA 20,000 V 700 amps
SPM6 61 lbs 18.5" x 19" x 10.7"  360 VA   6,000 V 150 amps
SPM10 62 lbs 18.5" x 19" x 10.7"  720 VA 10,000 V 300 amps
SPM12 63 lbs 18.5" x 19" x 10.7"  840 VA 12,000 V 375 amps
SPM15 64 lbs 18.5" x 19" x 10.7" 1080 VA 15,000 V 500 amps

 DC HI-POT SPECIFICATIONS
MODEL
NUMBER
MAXIMUM
OUTPUT
VOLTAGE
MAXIMUM
OUTPUT
CURRENT
HI-POT
OVERCURRENT
TRIP
CURRENT
RESOLUTION
 SP6, SPM6  6 KV 2000 µ amps 2000 µ amps 0.1 / 1 micro amps
SP10, SPM10 10 KV 2000 µ amps 2000 µ amps 0.1 / 1 micro amps
SP12, SPM12 12 KV 2000 µ amps 2000 µ amps 0.1 / 1 micro amps
SP15, SPM15 15 KV 2000 µ amps 2000 µ amps 0.1 / 1 micro amps
 SP20 20 KV 2000 µ amps 2000 µ amps 0.1 / 1 micro amps

*Please add the following designation, "-2M", after the model number for PJ Surge Testers designed to operate from 220-240 operating line voltage. For example, the Model TS15 would be identified as Model TS15-2M.

For the complete list of standard features on all Models, please link to our Price List page.

Signature "S" Model: 6KV to 20KV

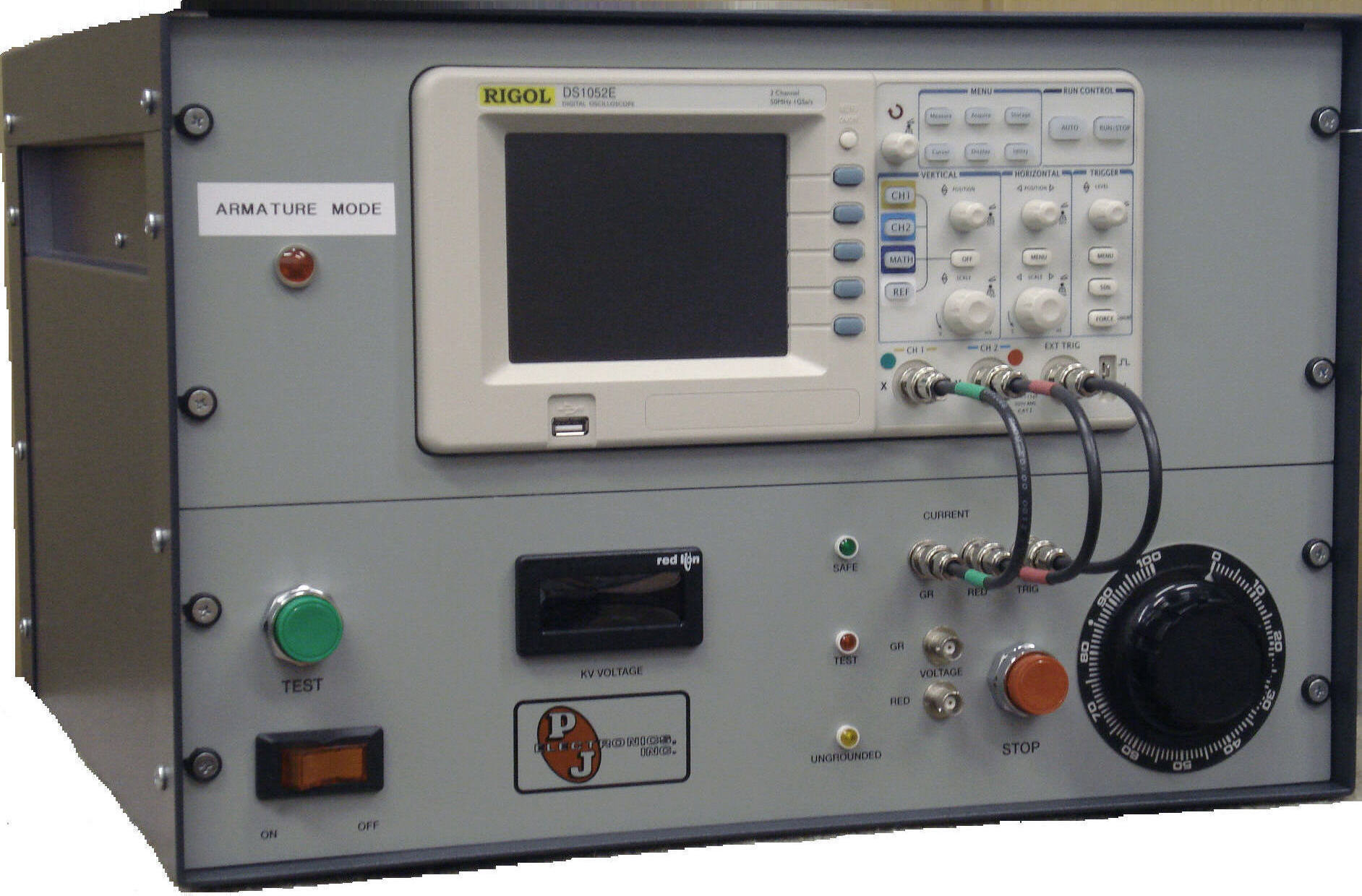

Bench size performance, durability & versatility with PJ's exclusive/unique High Frequency Technology capable of testing the integrity of any turn to turn insulation, including low inductance windings.  These Digital Surge Testers come standard with a rack-mounted color Rigol DSE series, digital storage, programmable oscilloscope with USB Interface Ports, USB Flash Drive for unlimited storage capabilities, Software and multi-language user interface.   Note: Our 6KV to 15KV Bench models (S, TS, SP, MB) can be equipped with a high voltage rotary switch to permit the tester to operate as either a low inductance Armature Tester or a standard Surge Tester.  See our price list page under Accessories/Options for this Armature Feature. (S Model (6-15KV) with optional Armature Feature, shown on right.)
PJ Electronics proudly offers a 20KV Bench Model (Model "S20").  PJ Electronics is the only manufacturer on the Market that offers a 20KV transportable Bench Model!


"TS" Model: 6KV to 15KV
Although all PJ Surge Testers are capable of testing 3 Phase Motors, this "TS" Model has the same characteristics as the Signature Model, but includes a built-in 3 phase test selector switch that facilitates 3 phase motor testing by mechanically re-positioning the ground terminal. This provides the operator with a quick identification of the defective phase when a fault is uncovered. The "TS" Model is perfect for the production line or high volume three phase motor testing. (TS Model shown on left.)

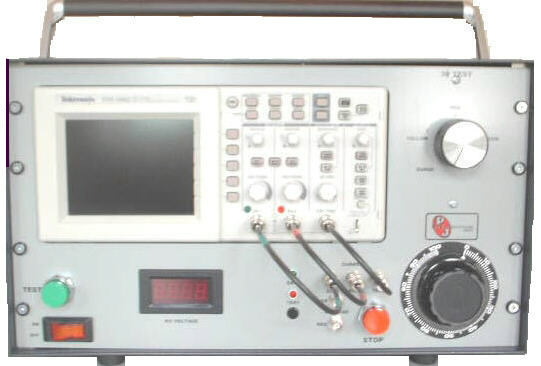

"TSM" Model (Portable): 6KV to 15KV
Same performance and testing capabilities as the "TS" Model, but designed in a compact cabinet that contains a multi-position carry/tilt handle and a rear plastic snap-on cover for cable storage and transportation in the shop or in the field. (TSM Model on right.)



"SP" Model: 6KV to 20KV
The SP Model offers Surge / DC Hi-Pot testing capabilities. The SP Model has all of the features of a Signature Tester plus a DC Hi-Pot Tester. DC Hi-Pot testing with dual LED panel meters that display direct read out of current and voltage, with overcurrent safety trip. This dual tester combo is still capable of testing 3 phase motors with or without rotors.
(SP Model (6-15KV) is shown on left with optional Armature Feature.)

PJ Electronics proudly offers a 20KV Surge / DC Hi-Pot Bench model (Model "SP20").  PJ Electronics is the only manufacturer on the Market that offers a 20KV transportable Bench Model!

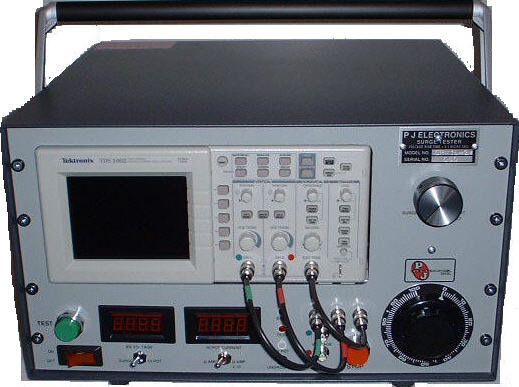

"SPM" Model (Portable): 6KV to 15KV
A High Frequency Digital Surge Tester and DC Hi-Pot Tester (similar to the "SP" Model) together in a compact cabinet. Take this portable tester to your test site and accurately perform Surge, Hi-Pot, PI and Resistance* Tests. *optional (SPM model shown on right.)


Some pictures may not show updated oscilloscopes.
