For the complete list of standard features on all Models, please link to our Price List page. "C" Model: (Console Models)

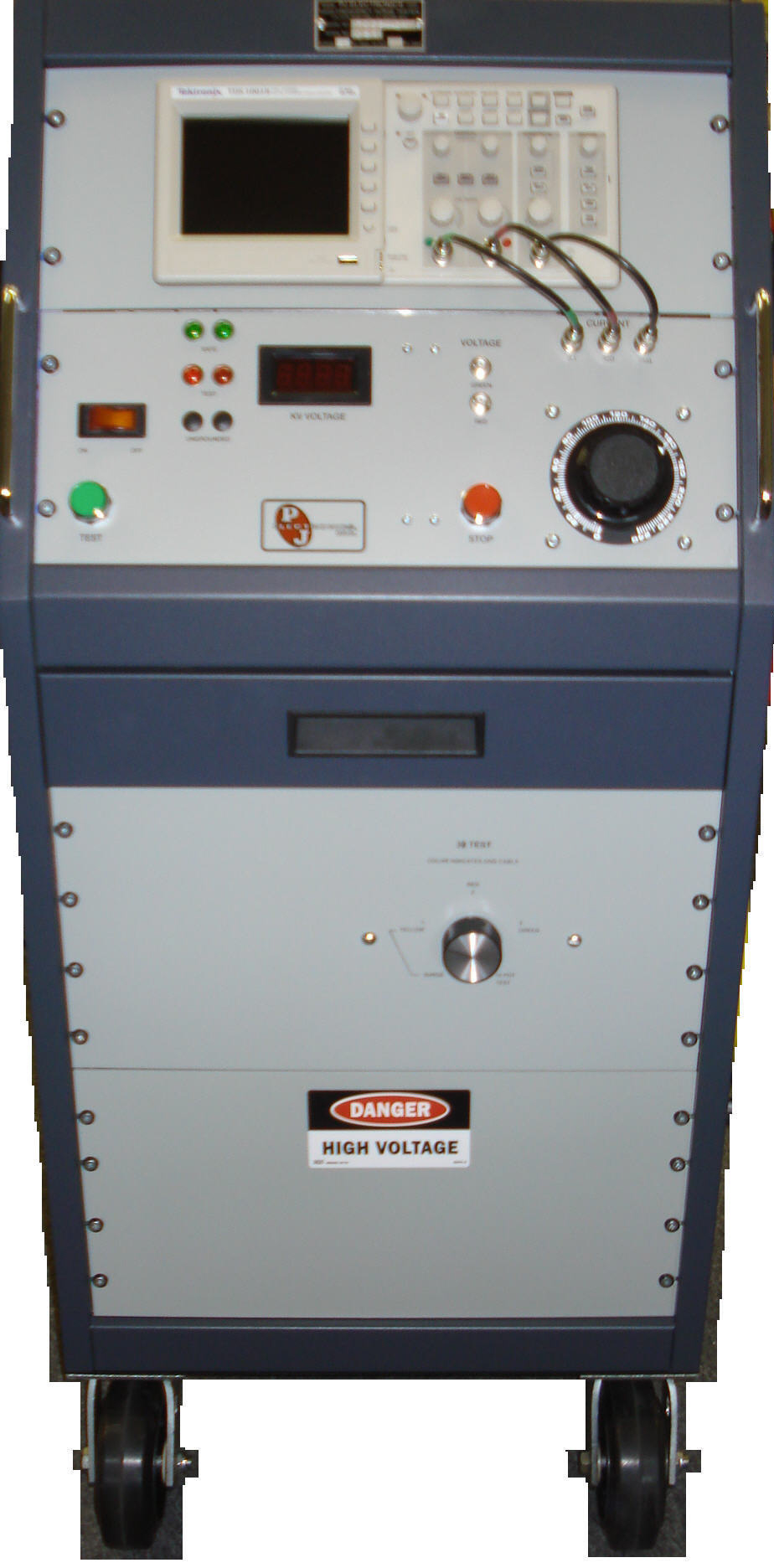

"TC" Model: (Surge with 3 Phase Transfer Switch Consoles) Although all PJ Surge Testers are capable of testing 3 Phase Motors, this "TC" Model has the same characteristics as the "C" Model, but includes a Built-in 3 Phase Test Selector Switch that facilitates 3 phase motor testing by mechanically re-positioning the ground terminal. (The operator does not have to physically re-position the surge tester leads once applied to the motor). This provides the operator with a quick
identification of the defective phase when a fault is uncovered. The "TC" Model is perfect for the production line or high volume three phase motor testing.
"MC" Model: (Multi Operational
Surge Tester (MOST) Consoles)
The "MC" Model has the same characteristics as the "C" Model plus features from the “TC” and “HC” models. We enhanced our one of a kind tester to now offer a Digital Surge, DC Hi-Pot & Built-In 3 Phase Test Selector Switch all-in-one versatile Tester. The DC Hi-Pot tester has separate panel meters for direct readout (voltage and current) so that no interpretation on the scope's display is ever needed and enables one to ascertain Polarization Index (PI) Test results. When you use the built-in 3 phase selector
switch for multi-phase motor testing, you have the confidence that all windings tested have been effectively stressed with PJ's exclusive High Frequency Technology. Add an optional milli-ohm resistance meter for Resistance Testing and upgrade to a color oscilloscope to further enhance this Multi Operational

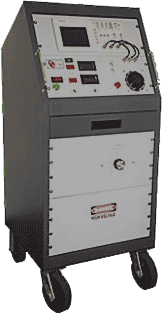

Surge Tester (MOST). (MC Model shown on left)
back to Models Available page | back to Price List
page HOME | WHY BUY A PJ SURGE TESTER | MODELS AVAILABLE | SPECIFICATIONS | PRICE LIST | CONTACT US | TECHNICAL SUPPORT Click here for a PDF printable version of this page.
Please note: BabelFish Translation is not a "technical" web site. Therefore, some words may not translate correctly. We apologize if your particular country is not listed.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
These Digital High Frequency Surge Testers are the ultimate in ruggedness & durability. Fourteen / sixteen gauge steel construction and mobility on 6" heavy duty rubber wheels makes it a favorite for use in harsh industrial environments.
The performance of PJ's exclusive/unique High Frequency Technology is capable of testing the integrity of any turn-to-turn insulation, including low inductance windings.
All Console testers come standard with dual waveform display presentations: (1) Resonant Current Waveforms for Surge Testing "coil-to-coil" and low impedance windings (2) Resonant Voltage Waveforms for Surge Testing all types of
multi-phase winding insulation systems including the surge testing of Fully Assembled Motors without moving the rotor.

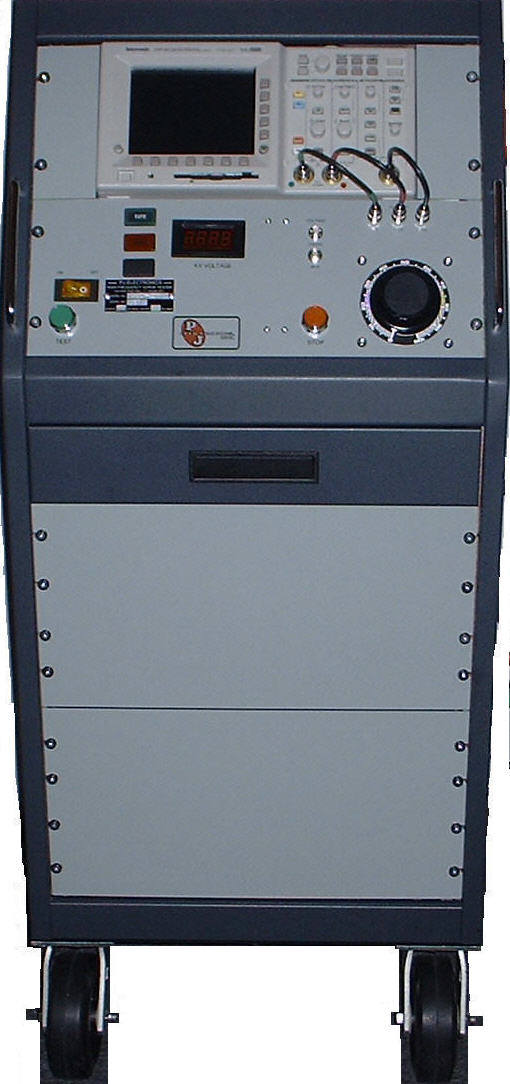

The internal components in these consoles are excessively over designed, just like the ones that were built in the early 1970's (which are still operating today). (Model C40 shown on right)
"HC" Model: (Surge / DC Hi-Pot Consoles) The "HC" Model offers Surge / DC Hi-Pot testing capabilities! The "HC" Model has all of the features of our "C" Model plus a DC Hi-Pot Tester. DC Hi-Pot includes dual LED panel meters that display direct read out of current and voltage, with overcurrent safety trip and the capability of ascertaining Polarization Index (PI) Test results. This dual tester combo

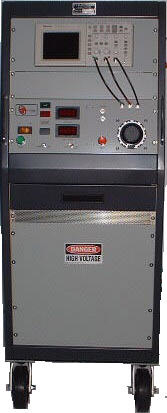

is still capable of testing 3 phase motors with or without rotors. However, the operator must re-position test leads applied to motor. (example photo of our Models HC10 through HC40 shown on right)
